Liquid Photo-Imageable Solder Mask Line

Make handling wet panels a thing of the past

Argus International spray technology has been proven superior to other methods of LPISM application. Our primary goal was to produce a spray system and a tack dry oven which could be linked through compatible conveyor systems to form a time and labor-efficient unit and to eliminate the handling of wet boards. A single, traversing spray head also increases efficiency by reducing setup time, and decreasing both machine cost and maintenance. HVLP-Heated Gun Technology allows use of high-solids LPISM for increased efficiency and minimized environmental impact.

Argus 9724 drying technology provides a major breakthrough in reduction of dry time. Typical convection systems require 35 to 45 minutes to tack dry LPISM coatings; the 3 Zone Tackdry Oven reduces this to 3 or 4 minutes and 5 Zone Final Cure Oven reduces cure time to 6 or 7 minutes.

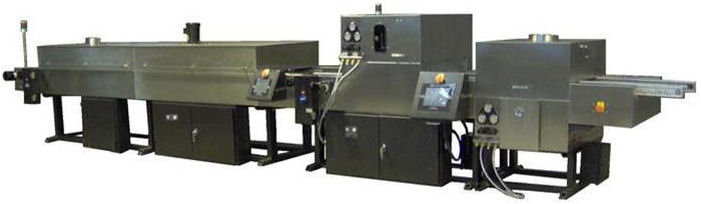

The Argus International 9000 Product Line, shown above, consists of a Double Sided LPISM Spray Application System and 3 Zone Tack-dry Oven.Make handling wet panels a thing of the past.

Model	9524S Single Side	9524D Double Side	9724x3 Three Zone	9724x5 Five Zone
Function	LPISM Spray Application System		IR Tack-dry Oven	IR Tack-dry/Final Cure Oven
Major Feature	Heated Spray-Gun Technology		Under 4 minutes Tack-dry Time	Under 7 minutes Final Cure Time
Throughput	For 24" x 24" [610mm x 610mm] board: Up to 120 Panels Per Hour
Panel Size	For 6" to 24" [152mm to 610mm] Wide by an Supported Length
